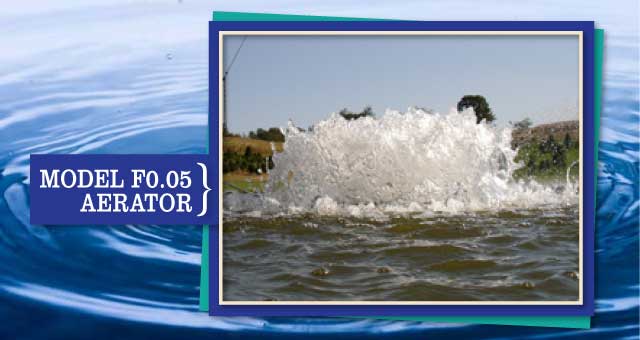

Model F0.05 Aerator





Used in small ponds, small raceways and hatching troughs

• Tested at Auburn University and University of Maryland,USA

• Average standard aeration efficiency 3.95 Lb./02/H.P./Hr.

• Standard oxygen transfer rate averaged 0.179 Lb./02/Hr. (81g 02/Hr.)

• Test results available upon request

• 1/20th H.P. Energy Efficient PSC Motor

• 1.5 AMP, 115 Volt, 60/50 Cycle

• Fresh and Salt Water durability

• 304 Stainless Steel and Bronze construction

• 25 Foot power cord standard

• Completely submersible

• Propeller designed for Maximum Thrust

• Gallons Per Minute 291.4

• New Stainless Steel Shackles

• Lightweight and Portable: 28LBS (12.6 Kilograms)

• Comes Complete with Two 25 Foot Lines

• Cage Provided - 1 Inch Mesh

• Motor UL/CSA Recognized & CE Certified

• One-Year Limited Warranty

• Ship U.P.S. or Pallet Load Motor Freight

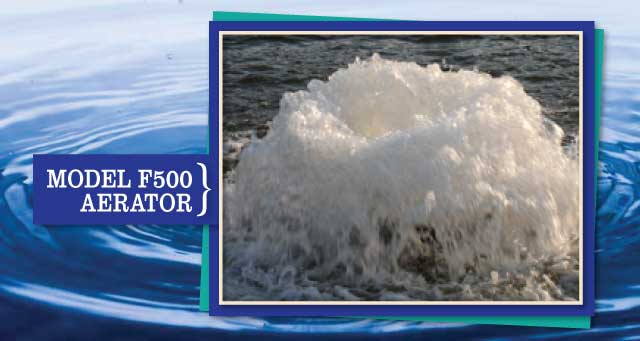

Model F500 Aerator





Used in small fish ponds, hatcheries, and raceways

• Increases Fish Density
• Excellent Water Circulation and Mixing
• Removes Carbon Dioxide
• Helps Prevent Algae Growth
• For Ponds of .1 to .5 Acres
• 1/2 H.P. Energy Efficient PSC Motor
• 5.0 AMPS, 115 Volt, 60/50 Cycle
• 2.5 AMPS, 230 Volt, 60/50 Cycle
• Fresh and Salt Water Durability
• 304 Stainless Steel and Bronze Construction
• Completely Submersible
• Performance Tested at Auburn University, and University of Maryland, USA
• Optional Cage - 1 Inch Mesh
• Motor UL/CSA Recognized & CE Certified
• One-Year Limited Warranty
• Ship U.P.S. or Pallet Load Motor Freight
• Shown Here with Heavy Duty ABS Float
• Average Oxygen Transfer Rate 2.606 Lb. O2/ Hr.
• Gallons Per Minute 884
• Propeller Designed for Maximum Thrust
• 50 Foot Power Cord Standard (weight - 38 lbs.)
• 100 Foot Power Cord Optional (weight - 46 lbs.)
• Comes Complete with Two 25 Foot Mooring Lines

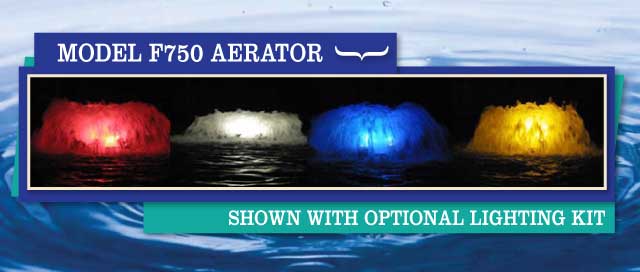

Model F750 Aerator





Used in large ponds, hatcheries, fish culture ponds ans fish research stations

• Average Oxygen Transfer Rate 2.956 Lb. O2/HR.
• Prevents Fish Stress and Mortality Increases Fish Production
• Helps Prevent Algae Growth
• Eliminates Ice Formation
• 3/4 H.P. Energy Efficient PSC Motor
• 4.7 AMPS, 115 Volt, 60/50 Cycle
• 2.5 AMPS, 230 Volt, 60/50 Cycle
• 304 Stainless Steel and Bronze Construction
• Heavy Duty ABS Float
• Good Water Circulation with No Turbidity
• For Ponds of .5 to 1.0 Acres
• Propeller Designed for Maximum Thrust
• 50 Foot Power Cord Standard (weight - 44 lbs.)
• 100 Foot Power Cord Optional (weight - 48 lbs.)
• Comes Complete with Two 25 Foot Mooring Lines
• Motor UL/CSA Recognized and CE Certified
• Optional Cage -1 Inch Mesh
• Gallons Per Minute 987.5

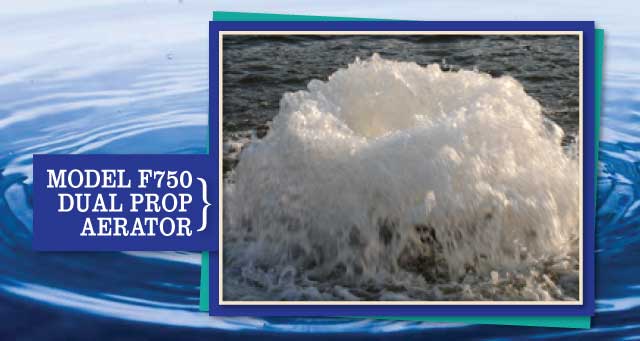

Model F750 Dual Prop Aerator





We have refined this model to provide a 25% increase in oxygen transfer with one of thehighest aeration efficiency rates in trhe industry!

• 3/4 H.P. Energy Efficient PSC Motor
• 9.0 AMPS, 115 Volts, 60/50 Cycle
• 4.8 AMPS, 230 Volts, 60/50 Cycle
• Same Top Quality Construction as All Other Models
• Motor UL/CSA Recognized and CE Certified

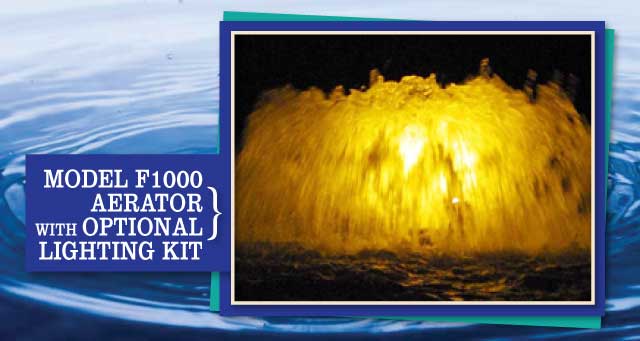

Model F1000 Aerator





Used in hatcheries, fish culture ponds, and fish research stations

• High Oxygen Transfer Rate
• Prevents Fish Stress and Mortality
• Good Water Circulation with No Turbidity
• Increases Growth Rate
• Fish Culture Ponds Of .75 To 1.5 Acres
• Fresh and Salt Water Durability
• 1 H.P. Energy Efficient PSC Motor
• Heavy Duty ABS Float
• 7.0 Amps, 115 Volt, 1 Phase, 60/50 Cycle
• 3.5 Amps, 230 Volt, 1 Phase, 60/50 Cycle
• 1.6 Amps, 230 Volt, 3 Phase, 60/50 Cycle
• Propeller Designed for Maximum Thrust
• One-Year Limited Warranty
• Optional Cage - 1 Inch Mesh
• 304 Stainless Steel and Bronze Construction
• 50 Foot 16/3 Power Cord Standard (weight - 44 lbs.)
• 100 Foot 16/3 Power Cord Optional (weight - 48 lbs.)
• Removes Carbon Dioxide
• Helps Prevent Algae Growth
• Motor UL/CSA Recognized & CE Certified



Model F1000 Dual Prop Aerator





We have refined this model to provide a 25% increase in oxygen transfer with one of thehighest aeration efficiency rates in trhe industry!

• 1 H.P. Energy Efficient PSC Motor
• 8.2 AMPS, 115 Volts, 60/50 Cycle
• 4.1 AMPS, 230 Volt, 60/50 Cycle
• Same Top Quality Construction as All Other Models
• Motor UL/CSA Recognized & CE Certified



Model F2000 Aerator





Used in cage culture programs, fish culture programs, fish culture ponds and fish research stations

• 2 H.P. Energy Efficient Motor - Capacitor Start - Induction Run
• 12 AMPS, 230 Volt, 1 Phase, 60 Cycle, 1750 RPM
• 304 Stainless Steel and Bronze Construction
• 3 Blade Stainless Steel Propeller Designed for Maximum Thrust
• Heavy Duty ABS Float
• 50 Foot Power Cord Standard
• Weight 110 Lbs. - 49.5 Kilograms
• One Year Limited Warranty
• Average Oxygen Transfer Rate 10.078 Lb. O2 / Hr.
• Gallons Per Minute 1283.6
• Motor UL/CSA Recognized and CE Certified
• For Ponds of 1.0 to 2.0 Acres with Depth of 10 Feet or More
• Optional Cage - 1 Inch Mesh
• Now Available with Full Size or Compact Cages

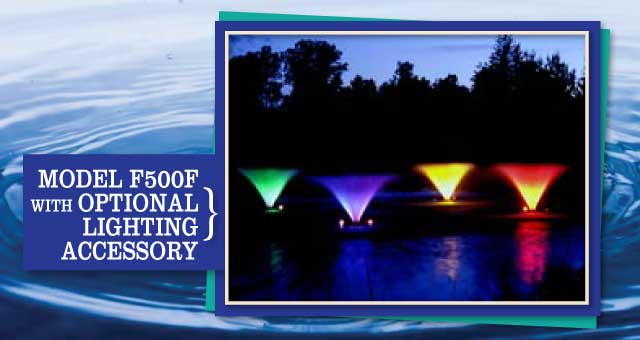

Model F500F Aerator





This adaptation of the reliable F500 Aerator produces a fountain-like water stream, providing a visually pleasing effect while supplying substantial water flow and high oxygen transfer. This unit is designed for use in areas where the appearance of the pond or lake is as important as the need for efficient aeration. The pattern produced is comparable to many of the larger fountain units on the market but uses less than half the electric power needed by these units. The high volume spray resists misting and icing.

Black float available upon request.

• 1/2 H.P. Energy Efficient PSC Motor
• 7.0 Amps, 115 Volt, 50/60 Cycle
• 3.5 Amps, 230 Volt, 50/60 Cycle
• 106 GPM
• Lightweight and Portable 42 or 52 lbs.
• 304 Stainless Steel and Bronze Construction
• 50 Foot Power Cord Standard (Also available in 100 Foot Cord)
• Complete with Two 25 Foot Mooring Lines
• Optional Cage - 1 Inch Mesh
• Motor UL/CSA Recognized and CE Certified
• One-Year Limited Warranty

• 4' High x 15' Diameter

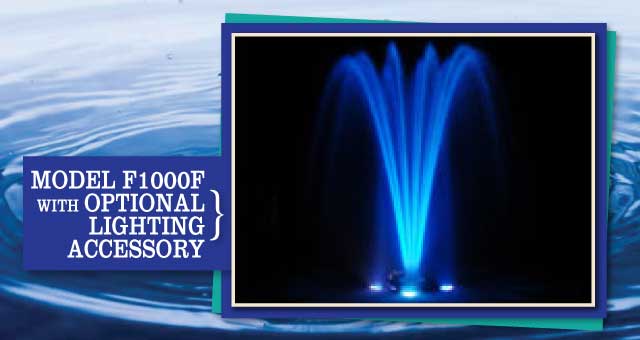

Model F1000F Fountain





This adaptation of the reliable F1000 Aerator produces a fountain-like water stream, providing a visually pleasing effect while supplying substantial water flow and high oxygen transfer. This unit is designed for use in areas where the appearance of the pond or lake is as important as the need for efficient aeration. The pattern produced is comparable to many of the larger fountain units on the market but uses less than half the electric power needed by these units. The high volume spray resists misting and icing.

Black float available upon request.

• 1 H.P. Energy Efficient PSC Motor
• 8.2 Amps, 115 Volt, 50/60 Cycle
• 4.1 Amps, 230 Volt, 50/60 Cycle
• 130 GPM
• Lightweight and Portable 48 or 54 lbs.
• 304 Stainless Steel and Bronze Construction
• 50 Foot Power Cord Standard (Also available in 100 Foot Cord)
• Complete with Two 25 Foot Mooring Lines
• Optional Cage - 1 Inch Mesh
• Motor UL/CSA Recognized & CE Certified
• One-Year Limited Warranty

• 6' High x 21' Diameter
